Product Details
- Size: 1070*653*630
- Place of Origin: Jilin, China (Mainland)
- Brand Name: BHB
- Model Number: HYCW-10/2 (HANGING)
- Weight: 210.000 kg

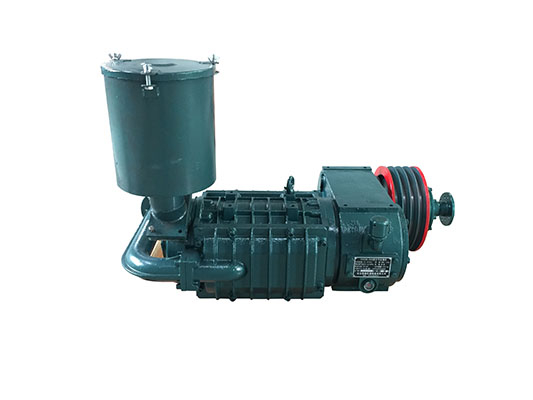

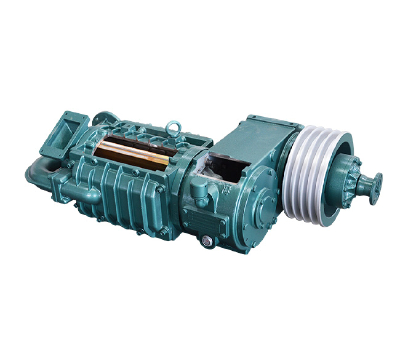

| HYCW - 10/2 Single-cylinder Hanging type pictures and technical parameters | ||||||
| Rated after displacement m/min | 10 | |||||
| The exhaust pressure rated Mpa | 0.2 | |||||
| Shaft power Kw | ≤35 | |||||
| Speed r/min | 980 | |||||
| Suction temperature ℃ | ≤40 | |||||
| Exhaust temperature ℃ | ≤200 | |||||
| Continuous operation time min | ≤60 | |||||
| The connection method | Directly connected | |||||
| Cooling way | Air cooling | |||||
| The flywheel diameter in mm | ￠298 | |||||
| The weight kg | 210 | |||||
| Overall dimensions | 1070*653*630 | |||||
